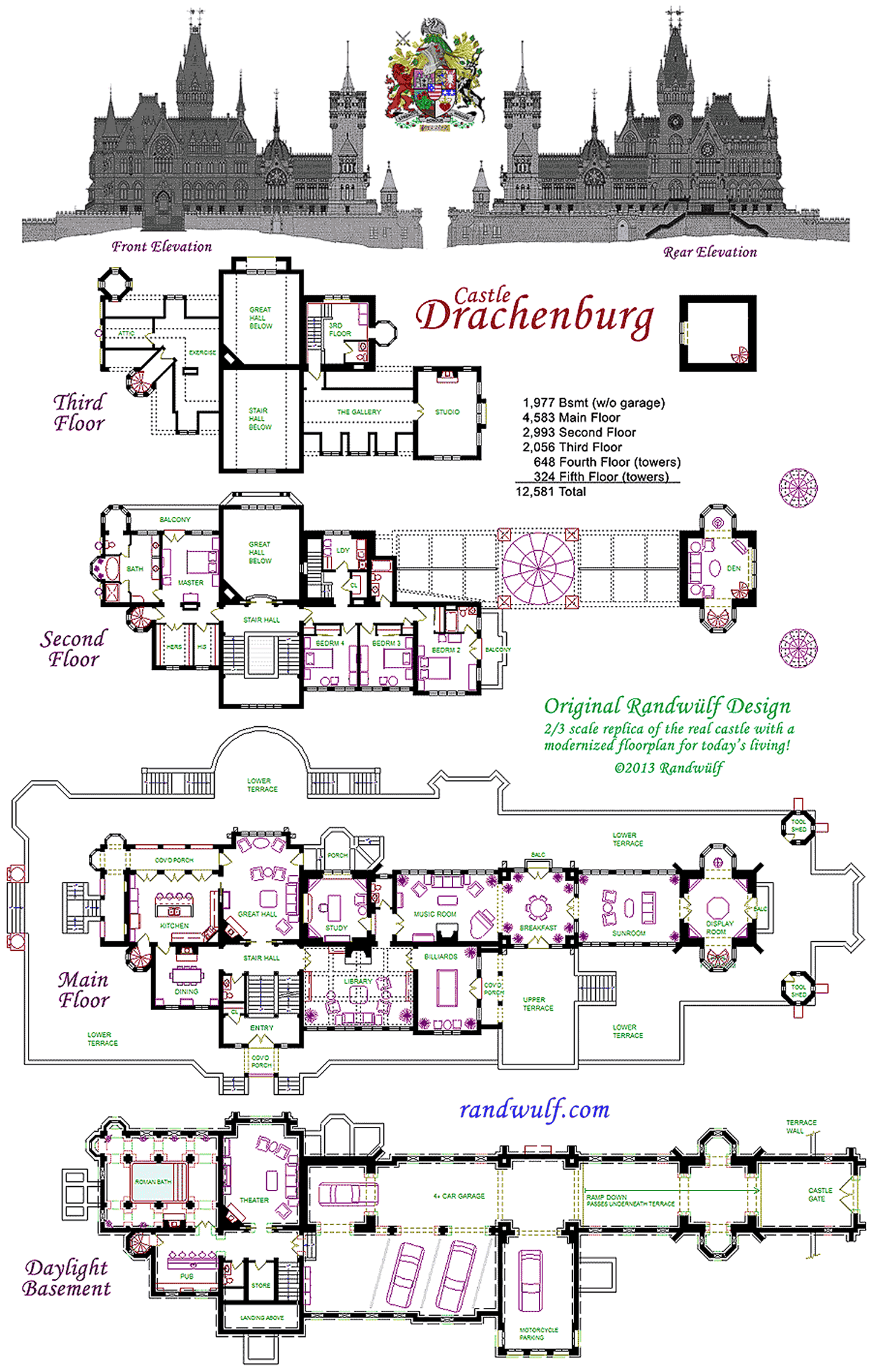

DRACHENBURG MINI-CASTLE  (12,581 sq ft)
Here's my own version of the Drachenburg Castle floor plan.  I cut the original castle down to 2/3 it's actual size, and made minimal changes to meet today's expectations.  I moved the Dining Room to the smaller front room, so I could bring the kitchen up from the lower level.  My Great Hall soars up three stories all the way to the roof!  There's a half-exposed daylight basement under the Great Hall, Kitchen, Dining, and Stair Hall, bringing the total footage to 12,581.  And there's a 4-car garage plus motorcycle parking area under the rest, accessible through a gate at the right end of the castle.  I'm displaying the Randwülf coat of arms here, which depicts a castle to show my love for architecture, and fashions the emblems of Schleswig-Holstein and the Douglas Scots to reveal my ancestoral roots.  The plans for the actual castle are in Collection 1 above.
